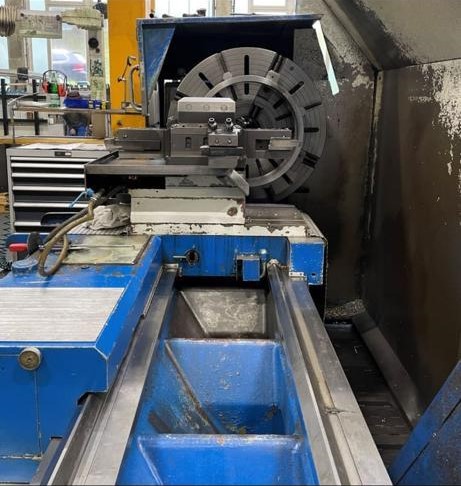

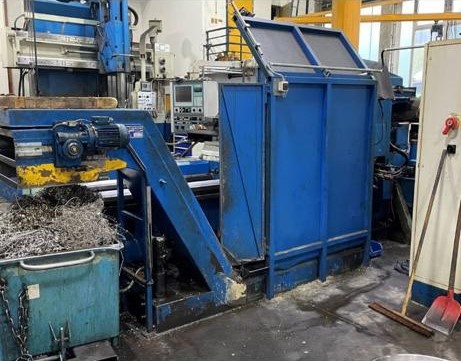

Machine Name: VDF CNC LATHE MACHINE-R&D MTC 4

Manufacturer:  VDF-WOHLENBERG

Model: R&D MTC 4

Country: GERMANY

Stock-no.: SEC00040

Technical Specifications

Make : VDF-WOHLENBERG

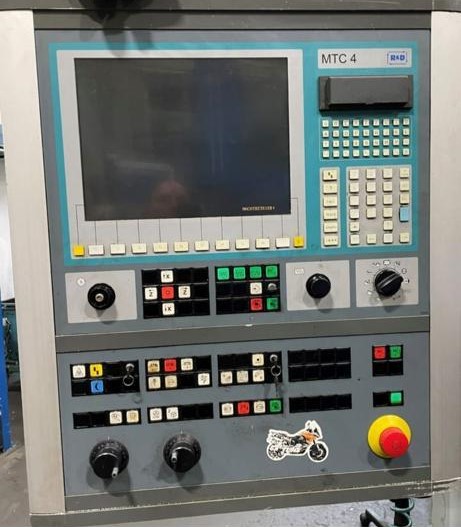

Control : R&D MTC 4
Country : Germany

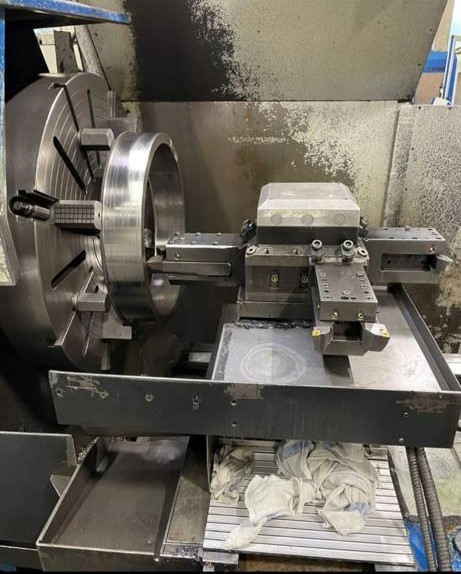

Chuck Size : 1000 mm
Center Height : 1070 mm
Bed length : 710 mm

Max. Crank Length: 400 mm
Peak Width: 950 mm
Total Machine Weight: 10 tons
Main Spindle Bore: 128 mm
Spindle Diameter (Front Bearing): 240 mm
Main Drive Power: 40 kW
Power Supply: 380V, 50Hz
Carriage & Support
Bed Carriage Length: 1000 mm
Bed Carriage Width: 1500 mm
Cross Slide Width: 425 mm
Cross Slide Travel: 400 mm
Feed Range (Longitudinal & Planar): 1 – 1000 mm/min
Rapid Traverse: 5000 mm/min
Workpiece Capacity: 6.3 tons
Flying in Faceplate: 2.5 tons
Max. Center of Gravity Distance: 250 mm
