WMW UNION CNC HORIZONTAL BORNG MACHINE-BFT 130/6

Make: UNION

Type: BFT 130/6

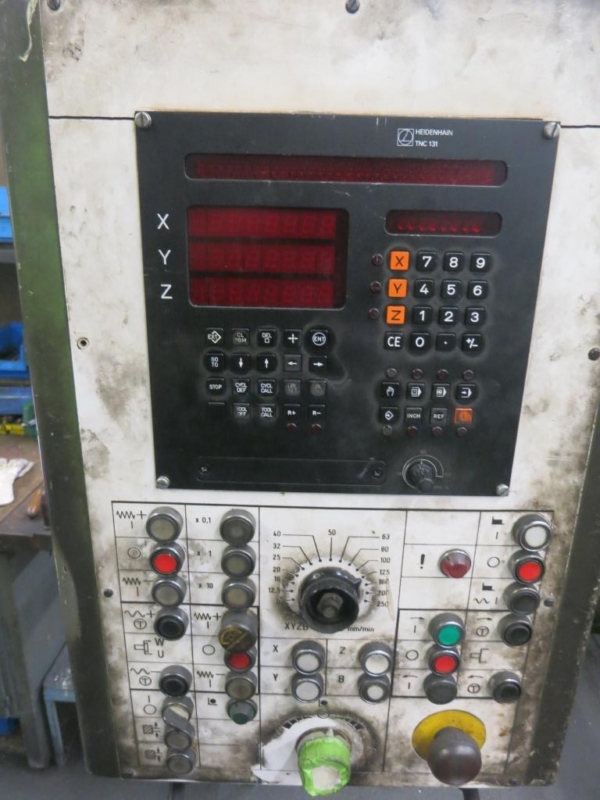

Control: Heidenhain TNC 131

Country: Germany

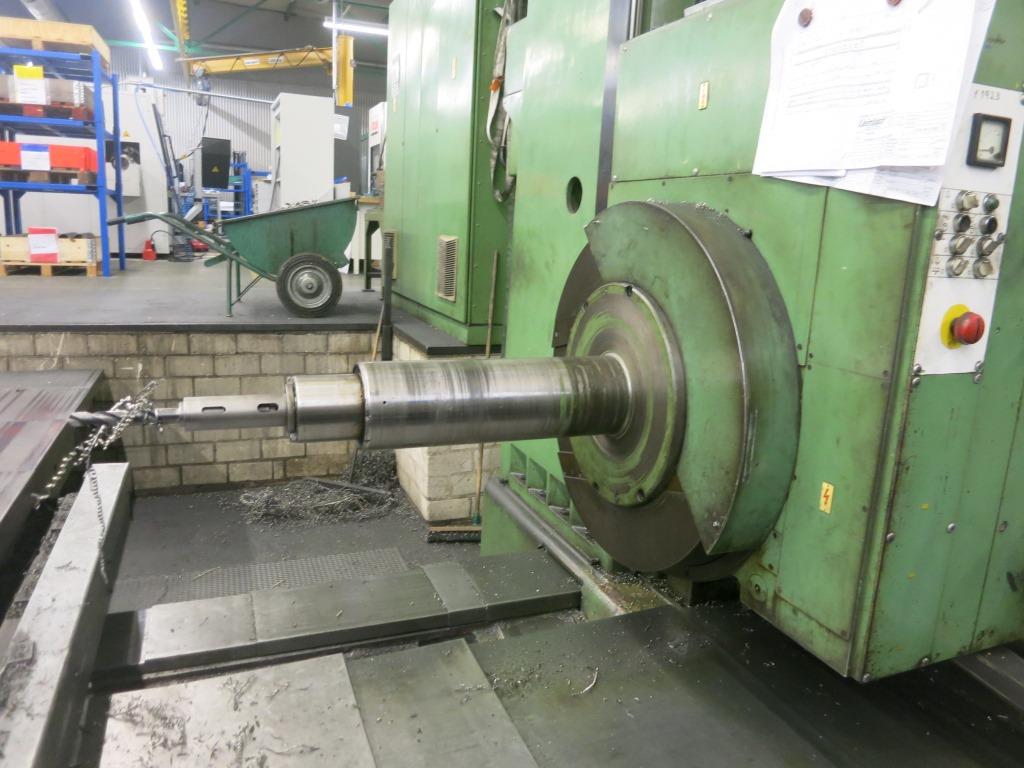

Spindle diameter :130 mm

X-Axis:  2750 mm

Y-Axis:  2000 mm

Z-Axis:  2330 mm

Spindle Taper: ISO  50

Drill spindle stroke:  1000 mm

Speed: 900 rpm

Feed: 2500 mm/min

T-slot width: 28 mm

Table load:8000 kg

Machine weight approx: 37.8 t
