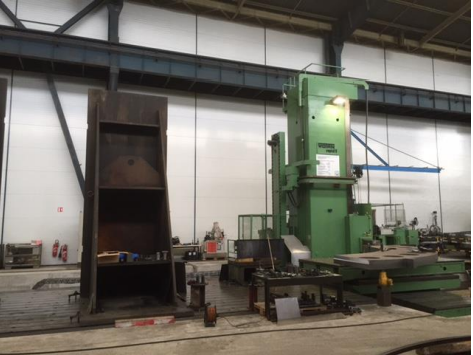

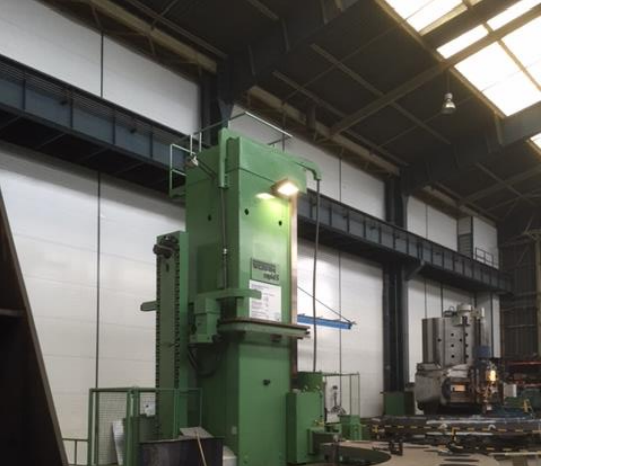

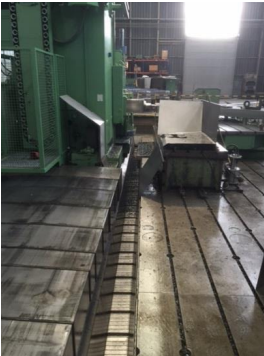

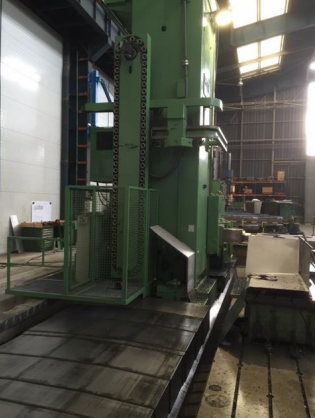

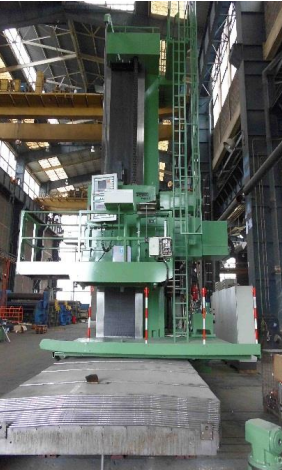

WOTAN CNC HORIZONTAL BORING MACHINE-RAPID - 5

CNC HORIZONTAL BORING MACHINE

Make  - WOTAN

Type - Rapid 5

CNC Control  - HEIDENHAIN TNC 430

Country - Germany

Spindle diameter -160 mm

Boring spindle - ISO 50

 X-Axis - 16.000 mm

 Y-Axis - 4.455 mm

 W-Axis - 900 mm

 Z-Axis - 800 mm

 RAM - 360 x 360 mm

Milling spindle 280 mm

Feed (X,Y,Z,W-Axis) 1-5.000 mm/min

Rapid speed (X,Y,Z,W-Axis) - 5.000 mm/min

Machine length - 21.980 mm

Machine width - 4.380 mm

Machine height - 8.700 mm

Machine weight approx. - 75 to.

Number of tools - 72 pc

Diameter - 315 mm

Length - 500 mm

Weight - 40 kg
