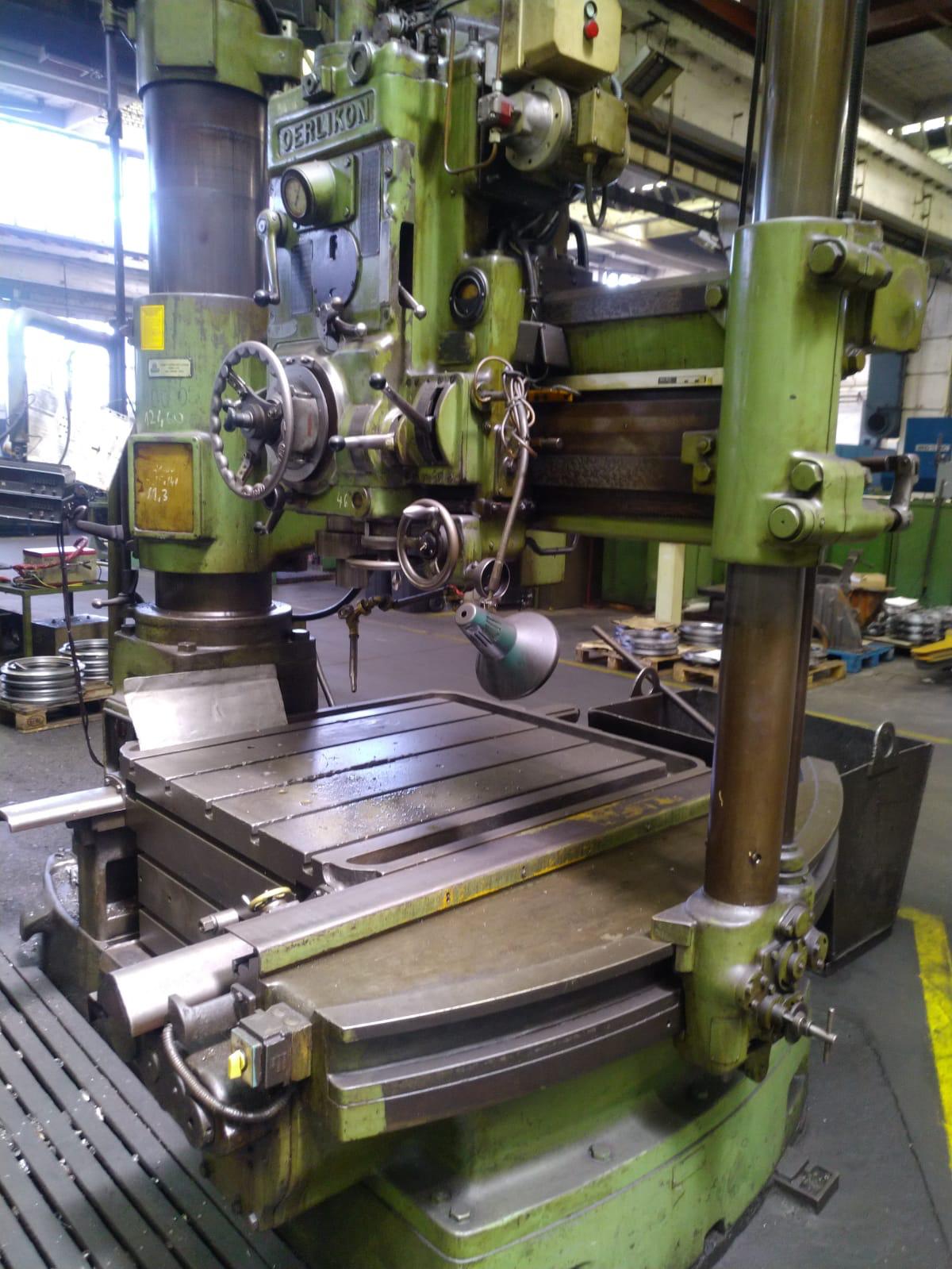

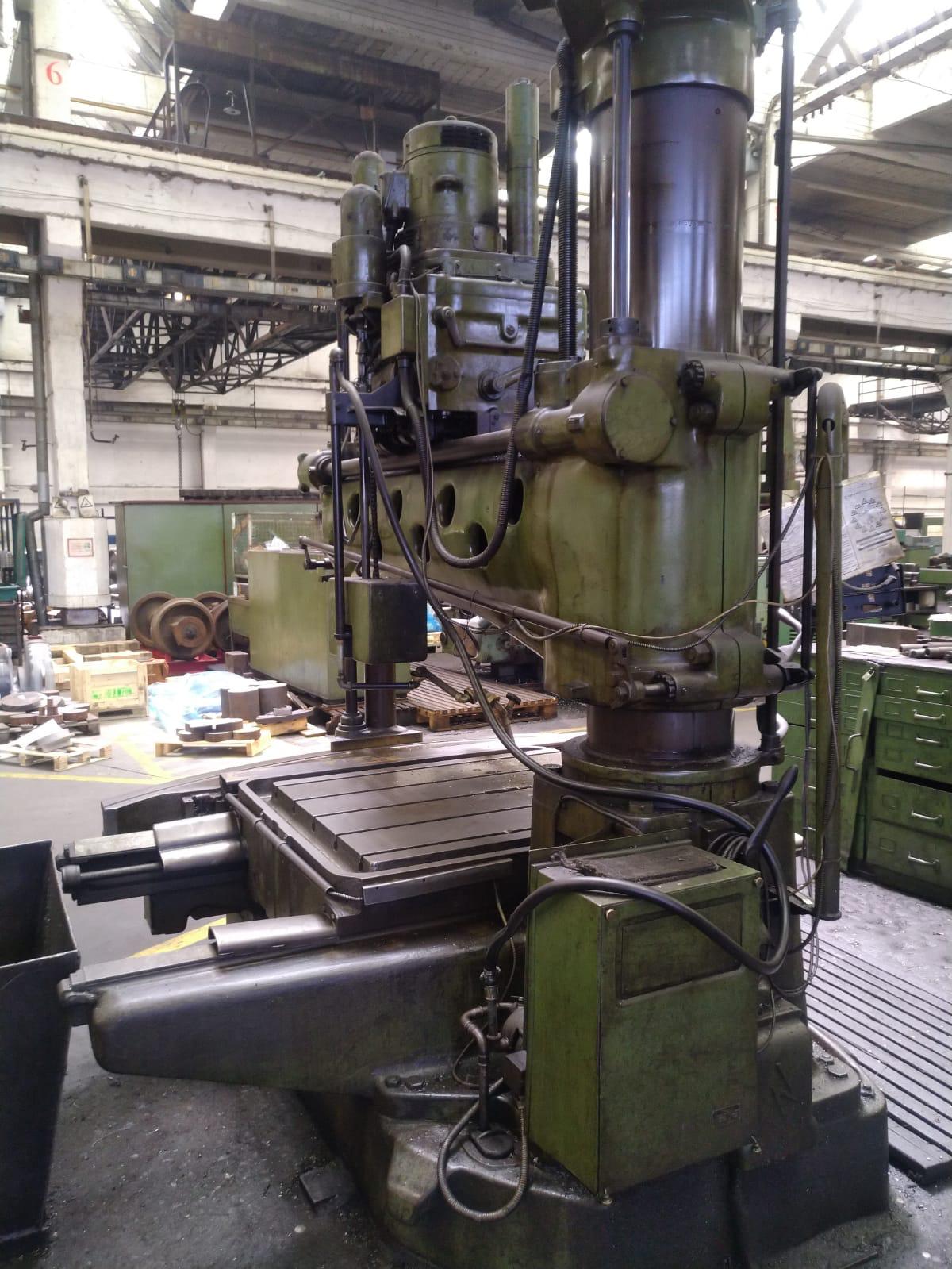

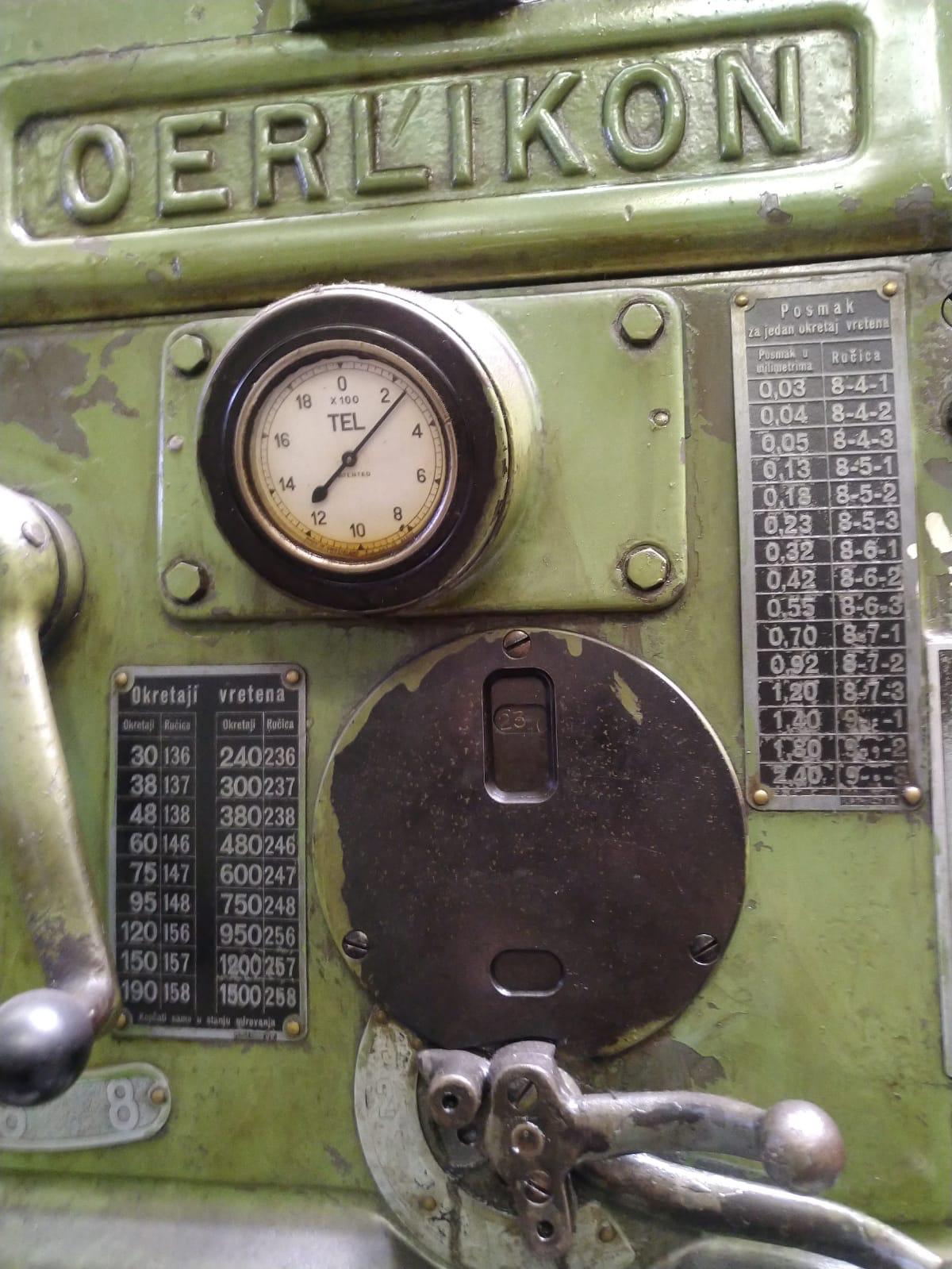

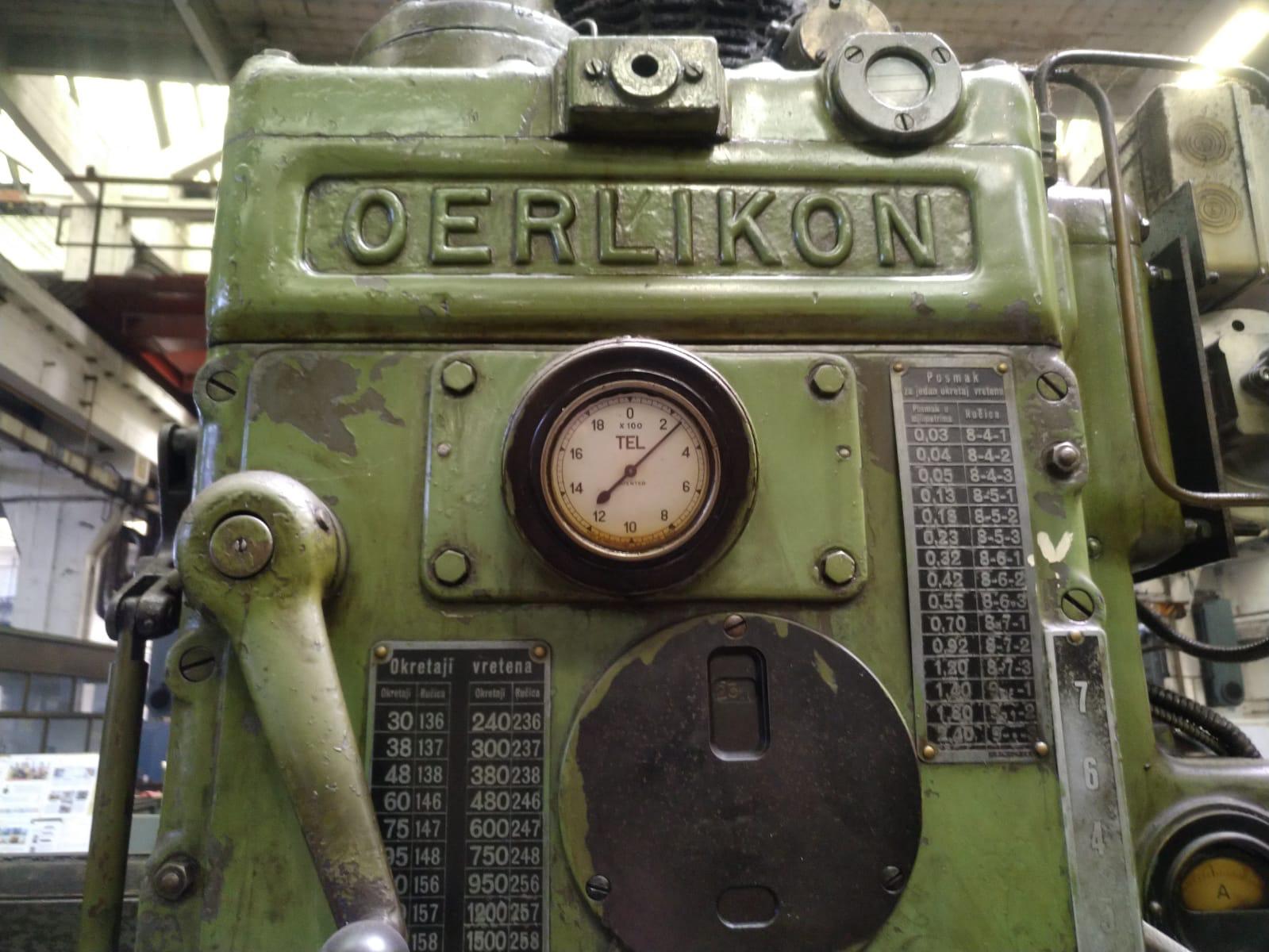

OERLIKON JIG BORING MACHINE-R 3

Machine type: Coordinate boring mill/machine

Manufacturer: Oerlikon

Model: R 3

DESCRIPTION

Jig boring machine

Manufacturer: Oerlikon

Type: R3

technical data:

Passage:

between columns: 1675 mm

drilling spindle to table: 1100 mm

drilling spindle to base plate: 1615 mm

displacement travels:

drilling slide: 720 mm

cross beam: 750 mm

table: 1200 mm

spindle: 370 mm

Dimensions:

Table surface (L x W): 1200 x 1130 mm

spindle - Ø: 75 mm (with MK 5)

Spindle sleeve - Ø: 130 mm

Power:

drilling motor: 8 hp

drilling capacity - Ø: 70 mm

Drilling power in grey cast iron - feed: 0,73

Spindle speed: 18

Spindle - drilling feeds: 12

spindle - reaming feeds: 3

table - milling feeds: 8

Table - rapid feeds: 2
